R-tree

Overview

R-tree is a tree-based data structure designed for optimal query performance on multi-dimensional spatial objects with rectangular bounding shapes. The R-tree implementation included in this library is a variant of R-tree known as R*-tree which differs from the original R-tree in that it may re-insert an object if the insertion of that object would cause the original target directory to overflow. Such re-insertions lead to more balanced tree which in turn lead to better query performance, at the expense of slightly more overhead at insertion time.

Our implementation of R-tree theoretically supports any number of dimensions although certain functionalities, especially those related to visualization, are only supported for 2-dimensional instances.

R-tree consists of three types of nodes. Value nodes store the values inserted externally and always sit at the bottom of the tree. Leaf directory nodes sit directly above the value nodes, and store only value nodes as their child nodes. The rest are all non-leaf directory nodes which can either store leaf or non-leaf directory nodes.

Quick start

Let’s go through a very simple example to demonstrate how to use rtree. First, you need to specify a concrete type by specifying the key type and value type to use:

#include <mdds/rtree.hpp>

#include <string>
#include <iostream>

// key values are of type double, and we are storing std::string as a
// value for each spatial object.  By default, tree becomes 2-dimensional
// object store unless otherwise specified.
using rt_type = mdds::rtree<double, std::string>;

You’ll only need to specify the types of key and value here unless you want to customize other properties of rtree including the number of dimensions. By default, rtree sets the number of dimensions to 2.

rt_type tree;

Instantiating an rtree instance should be no brainer as it requires no input parameters. Now, let’s insert some data:

tree.insert({{0.0, 0.0}, {15.0, 20.0}}, "first rectangle data");

This inserts a string value associated with a bounding rectangle of (0, 0) - (15, 20). Note that in the above code we are passing the bounding rectangle parameter to rtree’s insert() method as a nested initializer list, which implicitly gets converted to extent_type. You can also use the underlying type directly as follows:

rt_type::extent_type bounds({-2.0, -1.0}, {1.0, 2.0});
std::cout << "inserting value for " << bounds.to_string() << std::endl;
tree.insert(bounds, "second rectangle data");

which inserts a string value associated with a bounding rectangle of (-2, -1) to (1, 2). You may have noticed that this code also uses extent_type’s to_string() method which returns a string representation of the bounding rectangle. This may come in handy when debugging your code. This method should work as long as the key type used in your rtree class overloads std::ostream’s << operator function.

Running this code will generate the following output:

inserting value for (-2, -1) - (1, 2)

As extent_type consists of two members called start and end both of which are of type point_type, which in turn contains an array of keys called d whose size equals the number of dimensions, you can modify the extent directly:

bounds.start.d[0] = -1.0; // Change the first dimension value of the start rectangle point.
bounds.end.d[1] += 1.0; // Increment the second dimension value of the end rectangle point.
std::cout << "inserting value for " << bounds.to_string() << std::endl;
tree.insert(bounds, "third rectangle data");

This code will insert a string value associated with a rectangle of (-1, -1) to (1, 3), and will generate the following output:

inserting value for (-1, -1) - (1, 3)

So far we have only inserted data associated with rectangle shapes, but rtree also allows data associated with points to co-exist in the same tree. The following code inserts a string value associated with a point (5, 6):

tree.insert({5.0, 6.0}, "first point data");

Like the verfy first rectangle data we’ve inserted, we are passing the point data as an initializer list of two elements (for 2-dimensional data storage), which will implicitly get converted to point_type before it enters into the call.

Now that some data have been inserted, it’s time to run some queries. Let’s query all objects that overlap with a certain rectangular region either partially or fully. The following code will do just that:

// Search for all objects that overlap with a (4, 4) - (7, 7) rectangle.
auto results = tree.search({{4.0, 4.0}, {7.0, 7.0}}, rt_type::search_type::overlap);

for (const std::string& v : results)
    std::cout << "value: " << v << std::endl;

In this query, we are specifying the search region to be (4, 4) to (7, 7) which should overlap with the first rectangle data and the first point data. Indeed, when you execute this code, you will see the following output:

value: first rectangle data
value: first point data

indicating that the query region does overlap with two of the stored values

Note that the search() method takes exactly two arguments; the first one specifies the search region while the second two specifies the type of search to be performed. In the above call we passed search_type’s overlap enum value which picks up all values whose bounding rectangles overlap with the search region either partially or fully.

Sometimes, however, you may need to find a value whose bounding rectangle matches exactly the search region you specify in your query. You can achieve that by setting the search type to match.

Here is an example:

// Search for all objects whose bounding rectangles are exactly (4, 4) - (7, 7).
auto results = tree.search({{4.0, 4.0}, {7.0, 7.0}}, rt_type::search_type::match);
std::cout << "number of results: " << std::distance(results.begin(), results.end()) << std::endl;

The search region is identical to that of the previous example, but the search type is set to match instead. Then the next line will count the number of results and print it out. The output you will see is as follows:

number of results: 0

indicating that the results are empty. That is expected since none of the objects stored in the tree have an exact bounding rectangle of (4, 4) - (7, 7). When you change the search region to (0, 0) - (15, 20), however, you’ll get one object back. Here is the actual code:

// Search for all objects whose bounding rectangles are exactly (0, 0) - (15, 20).
auto results = tree.search({{0.0, 0.0}, {15.0, 20.0}}, rt_type::search_type::match);
std::cout << "number of results: " << std::distance(results.begin(), results.end()) << std::endl;

which is identical to the previous one except for the search resion. This is its output:

number of results: 1

indicating that it has found exactly one object whose bounding rectangle exactly matches the search region.

It’s worth mentioning that rtree supports storage of multiple objects with identical bounding rectangle. As such, searching with the search type of match can return more than one result.

As you may have noticed in these example codes, the search_results object does provide begin() and end() methods that return standard iterators which you can plug into various iterator algorithms from the STL. Dereferencing the iterator will return a reference to the stored value i.e. this line:

std::cout << "value: " << *results.begin() << std::endl;

which immediately comes after the previous search will output:

value: first rectangle data

In addition to accessing the value that the iterator references, you can also query from the same iterator object the bounding rectangle associated with the value as well as its depth in the tree by calling its extent() and depth() methods, respectively, as in the following code:

auto it = results.begin();
std::cout << "value: " << *it << std::endl;
std::cout << "extent: " << it.extent().to_string() << std::endl;
std::cout << "depth: " << it.depth() << std::endl;

Running this code will produce the following output:

value: first rectangle data
extent: (0, 0) - (15, 20)
depth: 1

A depth value represents the distance of the node where the value is stored from the root node of the tree, and is technically 0-based. However, you will never see a depth of 0 in the search results since the root node of a R-tree is always a directory node, and a directory node only stores other child nodes and never a value (hence never appears in the search results).

Removing a value from tree

Removing an existing value from the tree first requires you to perform the search to obtian search results, then from the search results get the iterator and advance it to the position of the value you wish to remove. Once you have your iterator set to the right position, pass it to the erase() method to remove that value.

Note that you can only remove one value at a time, and the iterator becomes invalid each time you call the erase() method to remove a value.

Here is a contrived example to demonstrate how erasing a value works:

#include <mdds/rtree.hpp>

#include <string>
#include <iostream>

int main()
{
    using rt_type = mdds::rtree<int, std::string>;

    rt_type tree;

    // Insert multiple values at the same point.
    tree.insert({1, 1}, "A");
    tree.insert({1, 1}, "B");
    tree.insert({1, 1}, "C");
    tree.insert({1, 1}, "D");
    tree.insert({1, 1}, "E");

    // This should return all five values.
    auto results = tree.search({1, 1}, rt_type::search_type::match);

    for (const std::string& v : results)
        std::cout << v << std::endl;

    // Erase "C".
    for (auto it = results.begin(); it != results.end(); ++it)
    {
        if (*it == "C")
        {
            tree.erase(it);
            break; // This invalidates the iterator.  Bail out.
        }
    }

    std::cout << "'C' has been erased." << std::endl;

    // Now this should only return A, B, D and E.
    results = tree.search({1, 1}, rt_type::search_type::match);

    for (const std::string& v : results)
        std::cout << v << std::endl;

    return EXIT_SUCCESS;
}

In this code, we are intentionally putting 5 values to the same 2-dimensional point (1, 1), then removing one of them based on matching criteria (of being equal to “C”).

Compiling and running this code will generate the following output:

A
B
C
D
E
'C' has been erased.
A
B
D
E

which clearly shows that the ‘C’ has been successfully erased.

Visualize R-tree structure

In this section we will illustrate a way to visualize an R-tree structure via export_tree() method, which can be useful when you need to visually inspect the tree structure to see how well balanced it is (or not).

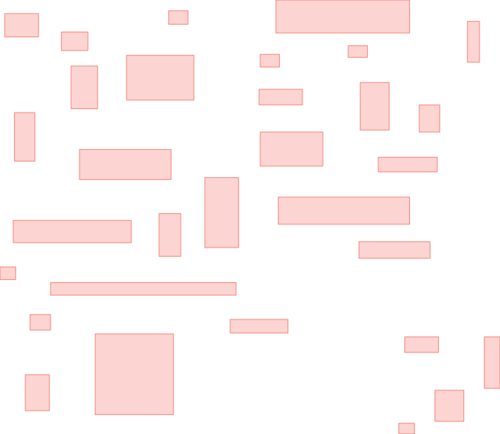

We will be using the following set of 2-dimensional rectangles as the bounding rectangles for input values.

_images/rtree_bounds_src.png

For input values, we’ll simply use linearly increasing series of integer values, but the values themselves are not the focus of this section, and we’ll not talk much about that. We will also intentionally make the capacity of directory nodes smaller so that the tree will split more frequently during insertion even for smaller number of inputs.

Now, let’s take a look at the code:

#include <mdds/rtree.hpp>

#include <iostream>
#include <fstream>

// Make the node capacity intentionally small.
struct tiny_trait_2d
{
    constexpr static size_t dimensions = 2;
    constexpr static size_t min_node_size = 2;
    constexpr static size_t max_node_size = 5;
    constexpr static size_t max_tree_depth = 100;

    constexpr static bool enable_forced_reinsertion = true;
    constexpr static size_t reinsertion_size = 2;
};

using rt_type = mdds::rtree<int, int, tiny_trait_2d>;

int main()
{
    // 2D rectangle with the top-left position (x, y), width and height.
    struct rect
    {
        int x;
        int y;
        int w;
        int h;
    };

    std::vector<rect> rects =
    {
        {  3731,  2433, 1356,  937 },
        {  6003,  3172, 1066,  743 },
        {  4119,  6403,  825, 1949 },
        { 10305,  2315,  776,  548 },
        { 13930,  5468, 1742,  626 },
        {  8614,  4107, 2709, 1793 },
        { 14606,  1887, 5368, 1326 },
        { 17990,  5196, 1163, 1911 },
        {  6728,  7881, 3676, 1210 },
        { 14704,  9789, 5271, 1092 },
        {  4071, 10723, 4739,  898 },
        { 11755,  9010, 1357, 2806 },
        { 13978,  4068,  776,  509 },
        { 17507,  3717,  777,  471 },
        { 20358,  6092,  824, 1093 },
        {  6390,  4535, 1066, 1715 },
        { 13978,  7182, 2516, 1365 },
        { 17942, 11580, 2854,  665 },
        {  9919, 10450,  873, 1716 },
        {  5568, 13215, 7446,  509 },
        {  7357, 15277, 3145, 3234 },
        {  3539, 12592,  631,  509 },
        {  4747, 14498,  825,  626 },
        {  4554, 16913,  969, 1443 },
        { 12771, 14693, 2323,  548 },
        { 18714,  8193, 2372,  586 },
        { 22292,  2743,  487, 1638 },
        { 20987, 17535, 1163, 1249 },
        { 19536, 18859,  632,  431 },
        { 19778, 15394, 1356,  626 },
        { 22969, 15394,  631, 2066 },
    };

    rt_type tree;

    // Insert the rectangle objects into the tree.
    int value = 0;
    for (const auto& rect : rects)
        tree.insert({{rect.x, rect.y}, {rect.x + rect.w, rect.y + rect.h}}, value++);

    // Export the tree structure as a SVG for visualization.
    std::string tree_svg = tree.export_tree(rt_type::export_tree_type::extent_as_svg);
    std::ofstream fout("bounds.svg");
    fout << tree_svg;

    return EXIT_SUCCESS;
}

First, we need to talk about how the concrete rtree type is instantiated:

// Make the node capacity intentionally small.
struct tiny_trait_2d
{
    constexpr static size_t dimensions = 2;
    constexpr static size_t min_node_size = 2;
    constexpr static size_t max_node_size = 5;
    constexpr static size_t max_tree_depth = 100;

    constexpr static bool enable_forced_reinsertion = true;
    constexpr static size_t reinsertion_size = 2;
};

using rt_type = mdds::rtree<int, int, tiny_trait_2d>;

The first and second template arguments specify the key and value types to be both int. This time around, however, we are passing a third template argument which is a struct containing several static constant values. These constant values define certain characteristics of your R-tree, and there are some restrictions you need to be aware of in case you need to use your own custom trait for your R-tree. Refer to default_rtree_trait, which is the default trait used when you don’t specify your own, for the descriptions of the individual constants that your trait struct is expected to have as well as restrictions that you must be aware of.

Also be aware that these constants must all be constant expressions with constexpr specifiers, as some of them are used within static_assert declarations, and even those that are currently not used within static_assert may be used in static_assert in the future.

As far as our current example goes, the only part of the custom trait we need to highlight is that we are setting the directory node size to 2-to-5 instead of the default size of 40-to-100, to trigger more node splits and make the tree artificially deeper.

Let’s move on to the next part of the code:

// 2D rectangle with the top-left position (x, y), width and height.
struct rect
{
    int x;
    int y;
    int w;
    int h;
};

std::vector<rect> rects =
{
    {  3731,  2433, 1356,  937 },
    {  6003,  3172, 1066,  743 },
    {  4119,  6403,  825, 1949 },
    { 10305,  2315,  776,  548 },
    { 13930,  5468, 1742,  626 },
    {  8614,  4107, 2709, 1793 },
    { 14606,  1887, 5368, 1326 },
    { 17990,  5196, 1163, 1911 },
    {  6728,  7881, 3676, 1210 },
    { 14704,  9789, 5271, 1092 },
    {  4071, 10723, 4739,  898 },
    { 11755,  9010, 1357, 2806 },
    { 13978,  4068,  776,  509 },
    { 17507,  3717,  777,  471 },
    { 20358,  6092,  824, 1093 },
    {  6390,  4535, 1066, 1715 },
    { 13978,  7182, 2516, 1365 },
    { 17942, 11580, 2854,  665 },
    {  9919, 10450,  873, 1716 },
    {  5568, 13215, 7446,  509 },
    {  7357, 15277, 3145, 3234 },
    {  3539, 12592,  631,  509 },
    {  4747, 14498,  825,  626 },
    {  4554, 16913,  969, 1443 },
    { 12771, 14693, 2323,  548 },
    { 18714,  8193, 2372,  586 },
    { 22292,  2743,  487, 1638 },
    { 20987, 17535, 1163, 1249 },
    { 19536, 18859,  632,  431 },
    { 19778, 15394, 1356,  626 },
    { 22969, 15394,  631, 2066 },
};

This rects variable holds an array of 2-dimensional rectangle data that represent the positions and sizes of rectangles shown earlier in this section. This will be used as bounding rectangles for the input values in the next part of the code:

rt_type tree;

// Insert the rectangle objects into the tree.
int value = 0;
for (const auto& rect : rects)
    tree.insert({{rect.x, rect.y}, {rect.x + rect.w, rect.y + rect.h}}, value++);

Here, the tree is instantiated, and the rectangles are inserted with their associated values one at a time. Once the tree is populated, the code that follows will export the structure of the tree as an SVG string, which will then be saved to a file on disk:

// Export the tree structure as a SVG for visualization.
std::string tree_svg = tree.export_tree(rt_type::export_tree_type::extent_as_svg);
std::ofstream fout("bounds.svg");
fout << tree_svg;

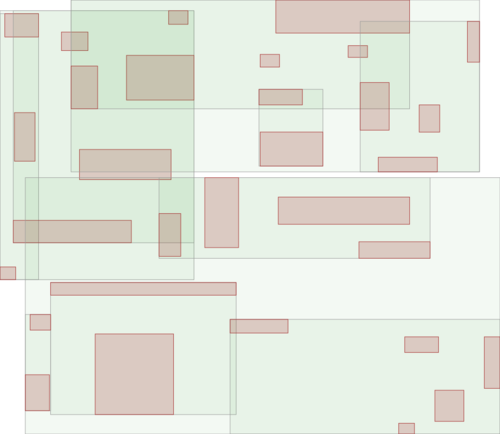

When you open the exported SVG file named bounds.svg in a SVG viewer, you’ll see something similar to this:

_images/rtree_bounds_tree.png

which depicts not only the bounding rectangles of the inserted values (the red rectangles), but also the bounding rectangles of the directory nodes as well (the light green rectangles).

Bulk-loading data

In this section we will explore on how to bulk-load data into an rtree instance via rtree’s own bulk_loader class. In this example, we’ll be using the same custom trait we’ve used in the previous section in order to artificially promote the rate of node splits. The first part of the code:

#include <mdds/rtree.hpp>

#include <iostream>
#include <fstream>

// Make the node capacity intentionally small.
struct tiny_trait_2d
{
    constexpr static size_t dimensions = 2;
    constexpr static size_t min_node_size = 2;
    constexpr static size_t max_node_size = 5;
    constexpr static size_t max_tree_depth = 100;

    constexpr static bool enable_forced_reinsertion = true;
    constexpr static size_t reinsertion_size = 2;
};

using rt_type = mdds::rtree<int, int, tiny_trait_2d>;

is pretty much identical to the example in the last section. The next part of the code defines what bounding rectangles to be inserted. Here, we are using a different set of rectangles than the previous example to illustrate the difference between a series of normal insertions and bulk-loading:

// 2D rectangle with the top-left position (x, y), width and height.
struct rect
{
    int x;
    int y;
    int w;
    int h;
};

std::vector<rect> rects =
{
    {  3538,  9126, 1908,  1908 },
    { 34272, 52053, 2416,  2543 },
    { 32113,  9761, 2416,   638 },
    { 16493, 16747, 7369,  2289 },
    { 29192, 23732, 3432,  2035 },
    { 35797, 17000, 1781,   892 },
    { 15857, 29319, 2162,  1654 },
    {  5825, 24239, 3559,  8512 },
    {  9127, 46846, 2543,  1019 },
    {  7094, 54338, 5210,   892 },
    { 18779, 39734, 3813, 10417 },
    { 32749, 35923, 2289,  2924 },
    { 26018, 31098,  257,  2797 },
    {  6713, 37066, 2924,  1146 },
    { 19541,  3157, 3305,  1146 },
    { 21953, 10904, 4448,   892 },
    { 15984, 24240, 5210,  1273 },
    {  8237, 15350, 2670,  2797 },
    { 17001, 13826, 4067,  1273 },
    { 30970, 13826, 3940,   765 },
    {  9634,  6587, 1654,  1781 },
    { 38464, 47099,  511,  1400 },
    { 20556, 54085, 1400,  1527 },
    { 37575, 24113, 1019,   765 },
    { 20429, 21064, 1146,  1400 },
    { 31733,  4427, 2543,   638 },
    {  2142, 27161, 1273,  7369 },
    {  3920, 43289, 8131,  1146 },
    { 14714, 34272, 1400,  4956 },
    { 38464, 41258, 1273,  1273 },
    { 35542, 45703,  892,  1273 },
    { 25891, 50783, 1273,  5083 },
    { 35415, 28431, 2924,  1781 },
    { 15476,  7349, 1908,   765 },
    { 12555, 11159, 1654,  2035 },
    { 11158, 21445, 1908,  2416 },
    { 23350, 28049, 3432,   892 },
    { 28684, 15985, 2416,  4321 },
    { 24620, 21953, 1654,   638 },
    { 30208, 30716, 2670,  2162 },
    { 26907, 44179, 2797,  4067 },
    { 21191, 35416, 2162,  1019 },
    { 27668, 38717,  638,  3178 },
    {  3666, 50528, 2035,  1400 },
    { 15349, 48750, 2670,  1654 },
    { 28430,  7221, 2162,   892 },
    {  4808,  3158, 2416,  1273 },
    { 38464,  3666, 1527,  1781 },
    {  2777, 20937, 2289,  1146 },
    { 38209,  9254, 1908,  1781 },
    {  2269, 56497, 2289,   892 },
};

As with the previous example, each line contains the top-left position as well as the size of a rectangle. We are now going to insert these rectangles in two different ways.

First, we insert them via normal insert() method:

void load_tree()
{
    rt_type tree;

    // Insert the rectangle objects into the tree.
    int value = 0;
    for (const auto& rect : rects)
        tree.insert({{rect.x, rect.y}, {rect.x + rect.w, rect.y + rect.h}}, value++);

    // Export the tree structure as a SVG for visualization.
    std::string tree_svg = tree.export_tree(rt_type::export_tree_type::extent_as_svg);
    std::ofstream fout("bounds2.svg");
    fout << tree_svg;
}

This code should look familiar since it’s nearly identical to the code in the previous section. After the insertion is done, we export the tree as an SVG to visualize its structure.

Next, we insert the same set of rectangles via bulk_loader:

void bulkload_tree()
{
    rt_type::bulk_loader loader;

    // Insert the rectangle objects into the tree.
    int value = 0;
    for (const auto& rect : rects)
        loader.insert({{rect.x, rect.y}, {rect.x + rect.w, rect.y + rect.h}}, value++);

    // Start bulk-loading the tree.
    rt_type tree = loader.pack();

    // Export the tree structure as a SVG for visualization.
    std::string tree_svg = tree.export_tree(rt_type::export_tree_type::extent_as_svg);
    std::ofstream fout("bounds2-bulkload.svg");
    fout << tree_svg;
}

Inserting via bulk_loader shouldn’t be too different than inserting via rtree’s own insert methods. The only difference is that you instantiate a bulk_loader instance to insert all your data to it, then call its pack() method at the end to construct the final rtree instance.

When the insertion is done and the tree instance created, we are once again exporting its structure to an SVG file for visualization.

There are primarily two advantages to using bulk_loader to load data. First, unlike the normal insertion, bulk-loading does not trigger re-insertion nor node splits on the fly. Second, a tree created from bulk loader is typically well balanced than if you insert the same data through normal insertion. That is because the bulk loader sorts the data with respect to their bounding rectangles ahead of time and partition them evenly. The tree is then built from the bottom-up. You can visually see the effect of this when comparing the two trees built in our current example.

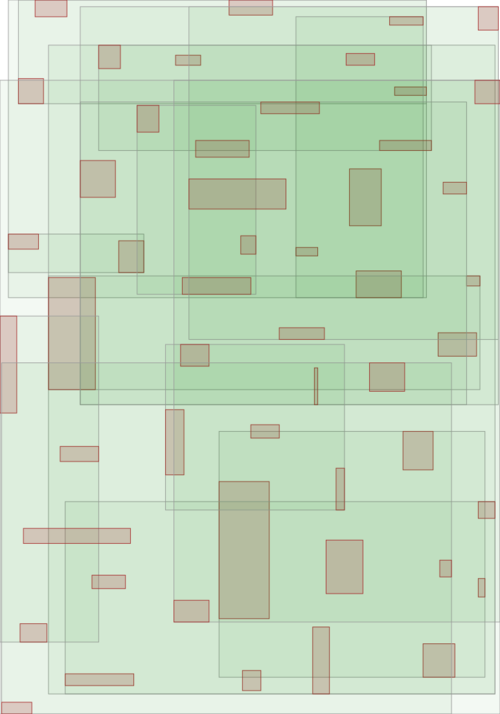

The first one is from the tree built via normal insertion:

_images/rtree_bounds2_tree.png

The top part of the picture looks very “busy” indicated by a darker green area representative of more directory nodes overlaping with each other. In general, the rectangles look bigger and show higher degree of overlaps.

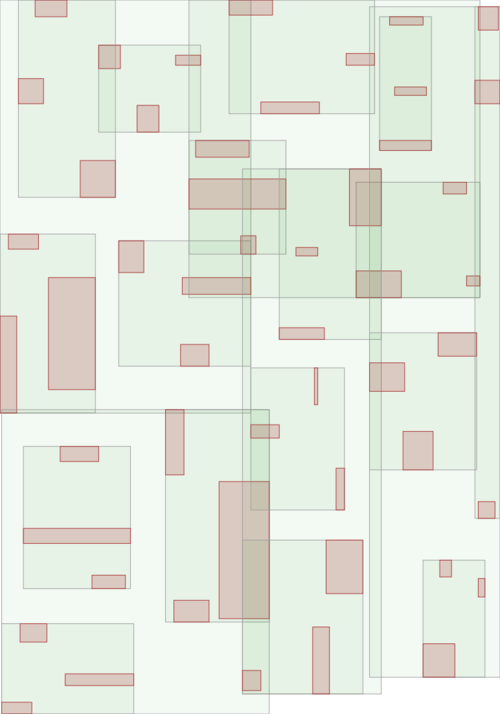

This one, on the other hand, is from the tree built with the same data set but through bulk-loading:

_images/rtree_bounds2_tree_bulkload.png

The rectangles generally look smaller and show much less overlaps than the previous picture, which is considered to be a more balanced R-tree structure.

API Reference

template <typename _Key, typename _Value, typename _Trait = detail::rtree::default_rtree_trait>
class rtree

Public Types

template<>
using key_type = _Key
template<>
using value_type = _Value
template<>
using node_type = detail::rtree::node_type
template<>
using export_tree_type = detail::rtree::export_tree_type
template<>
using search_type = detail::rtree::search_type
template<>
using integrity_check_properties = detail::rtree::integrity_check_properties

Public Functions

rtree()
rtree(rtree &&other)
rtree(const rtree &other)
~rtree()
rtree &operator=(const rtree &other)
rtree &operator=(rtree &&other)
void insert(const extent_type &extent, value_type &&value)

Insert a new value associated with a bounding box. The new value object will be moved into the container.

Parameters
  • extent: bounding box associated with the value.
  • value: value being inserted.

void insert(const extent_type &extent, const value_type &value)

Insert a new value associated with a bounding box. A copy of the new value object will be placed into the container.

Parameters
  • extent: bounding box associated with the value.
  • value: value being inserted.

void insert(const point_type &position, value_type &&value)

Insert a new value associated with a point. The new value object will be moved into the container.

Parameters
  • position: point associated with the value.
  • value: value being inserted.

void insert(const point_type &position, const value_type &value)

Insert a new value associated with a point. A copy of the new value object will be placed into the container.

Parameters
  • position: point associated with the value.
  • value: value being inserted.

const_search_results search(const point_type &pt, search_type st) const

Search the tree and collect all value objects whose extents either contain the specified point, or exactly match the specified point.

Return
collection of all value objects that satisfy the specified search condition. This collection is immutable.
Parameters
  • pt: reference point to use for the search.
  • st: search type that determines the satisfying condition of the search with respect to the reference point.

search_results search(const point_type &pt, search_type st)

Search the tree and collect all value objects whose extents either contain the specified point, or exactly match the specified point.

Return
collection of all value objects that satisfy the specified search condition. This collection is mutable.
Parameters
  • pt: reference point to use for the search.
  • st: search type that determines the satisfying condition of the search with respect to the reference point.

const_search_results search(const extent_type &extent, search_type st) const

Search the tree and collect all value objects whose extents either overlaps with the specified extent, or exactly match the specified extent.

Return
collection of all value objects that satisfy the specified search condition. This collection is immutable.
Parameters
  • extent: reference extent to use for the search.
  • st: search type that determines the satisfying condition of the search with respect to the reference extent.

search_results search(const extent_type &extent, search_type st)

Search the tree and collect all value objects whose extents either overlaps with the specified extent, or exactly match the specified extent.

Return
collection of all value objects that satisfy the specified search condition. This collection is mutable.
Parameters
  • extent: reference extent to use for the search.
  • st: search type that determines the satisfying condition of the search with respect to the reference extent.

void erase(const const_iterator &pos)

Erase the value object referenced by the iterator passed to this method.

The iterator object will become invalid if the call results in an erasure of a value.

Parameters
  • pos: iterator that refernces the value object to erase.

void erase(const iterator &pos)

Erase the value object referenced by the iterator passed to this method.

The iterator object will become invalid if the call results in an erasure of a value.

Parameters
  • pos: iterator that refernces the value object to erase.

const extent_type &extent() const

Get the minimum bounding extent of the root node of the tree. The extent returned from this method is the minimum extent that contains the extents of all objects stored in the tree.

Return
immutable reference to the extent of the root node of the tree.

bool empty() const

Check whether or not the tree stores any objects.

Return
true if the tree is empty, otherwise false.

size_t size() const

Return the number of value nodes currently stored in the tree.

Return
number of value nodes currently in the tree.

void swap(rtree &other)

Swap the content of the tree with another instance.

Parameters
  • other: another instance to swap the content with.

void clear()

Empty the entire container.

template <typename _Func>
void walk(_Func func) const

Walk down the entire tree depth first.

function or function object that gets called at each node in the tree.

void check_integrity(const integrity_check_properties &props) const

Check the integrity of the entire tree structure.

Parameters
  • props: specify how the check is to be performed.
Exceptions
  • integrity_error: if the integrity check fails.

std::string export_tree(export_tree_type mode) const

Export the structure of a tree in textural format.

Return
string representation of the tree structure.
Parameters
  • mode: specify the format in which to represent the structure of a tree.

class bulk_loader

Loader optimized for loading a large number of value objects. A resultant tree will have a higher chance of being well balanced than if the value objects were inserted individually into the tree.

Public Functions

template<>
bulk_loader()
template<>
void insert(const extent_type &extent, value_type &&value)
template<>
void insert(const extent_type &extent, const value_type &value)
template<>
void insert(const point_type &position, value_type &&value)
template<>
void insert(const point_type &position, const value_type &value)
template<>
rtree pack()
class const_iterator : public mdds::rtree<_Key, _Value, _Trait>::iterator_base<const_iterator, const_search_results::store_type::const_iterator, const rtree::value_type>

Public Types

template<>
template<>
using value_type = _ValueT

Public Functions

template<>
value_type &operator*() const
template<>
value_type *operator->() const
class const_search_results : public mdds::rtree<_Key, _Value, _Trait>::search_results_base<const node_store>

Public Functions

template<>
const_iterator cbegin() const
template<>
const_iterator cend() const
template<>
const_iterator begin() const
template<>
const_iterator end() const
struct extent_type

Public Functions

template<>
extent_type()
template<>
extent_type(const point_type &_start, const point_type &_end)
template<>
std::string to_string() const
template<>
bool is_point() const
template<>
bool operator==(const extent_type &other) const
template<>
bool operator!=(const extent_type &other) const
template<>
bool contains(const point_type &pt) const

Determine whether or not the specified point lies within this extent.

Return
true if the point lies within this extent, or false otherwise.
Parameters
  • pt: point to query with.

template<>
bool contains(const extent_type &bb) const

Determine whether or not the specified extent lies entirely within this extent.

Return
true if the specified extent lies entirely within this extent, or otherwise false.
Parameters
  • bb: extent to query with.

template<>
bool intersects(const extent_type &bb) const

Determine whether or not the specified extent overlaps with this extent either partially or fully.

Return
true if the specified extent overlaps with this extent, or otherwise false.
Parameters
  • bb: extent to query with.

template<>
bool contains_at_boundary(const extent_type &other) const

Determine whether or not another bounding box is within this bounding box and shares a part of its boundaries.

Public Members

template<>
point_type start
template<>
point_type end
class iterator : public mdds::rtree<_Key, _Value, _Trait>::iterator_base<iterator, search_results::store_type::iterator, rtree::value_type>

Public Types

template<>
template<>
using value_type = _ValueT

Public Functions

template<>
value_type &operator*()
template<>
value_type *operator->()
template <typename _SelfIter, typename _StoreIter, typename _ValueT>
class iterator_base

Public Types

template<>
template<>
using store_iterator_type = _StoreIter
template<>
template<>
using self_iterator_type = _SelfIter
template<>
template<>
using value_type = _ValueT
template<>
template<>
using pointer = value_type *
template<>
template<>
using reference = value_type&
template<>
template<>
using difference_type = std::ptrdiff_t
template<>
template<>
using iterator_category = std::bidirectional_iterator_tag

Public Functions

template<>
bool operator==(const self_iterator_type &other) const
template<>
bool operator!=(const self_iterator_type &other) const
template<>
self_iterator_type &operator++()
template<>
self_iterator_type operator++(int)
template<>
self_iterator_type &operator--()
template<>
self_iterator_type operator--(int)
template<>
const extent_type &extent() const
template<>
size_t depth() const
struct node_properties

Public Members

template<>
node_type type
template<>
extent_type extent
struct point_type

Public Functions

template<>
point_type()
template<>
point_type(std::initializer_list<key_type> vs)
template<>
std::string to_string() const
template<>
bool operator==(const point_type &other) const
template<>
bool operator!=(const point_type &other) const

Public Members

template<>
key_type d[trait_type::dimensions]
class search_results : public mdds::rtree<_Key, _Value, _Trait>::search_results_base<node_store>

Public Functions

template<>
iterator begin()
template<>
iterator end()
struct default_rtree_trait

Public Static Attributes

constexpr size_t dimensions = 2

Number of dimensions in bounding rectangles.

constexpr size_t min_node_size = 40

Minimum number of child nodes that must be present in each directory node. Exception is the root node, which is allowed to have less than the minimum number of nodes, but only when it’s a leaf directory node.

constexpr size_t max_node_size = 100

Maximum number of child nodes that each directory node is allowed to have. There are no exceptions to this rule.

constexpr size_t max_tree_depth = 100

Maximum depth a tree is allowed to have.

constexpr bool enable_forced_reinsertion = true

A flag to determine whether or not to perform forced reinsertion when a directory node overflows, before attempting to split the node.

constexpr size_t reinsertion_size = 30

Number of nodes to get re-inserted during forced reinsertion. This should be roughly 30% of max_node_size + 1, and should not be greater than max_node_size - min_node_size + 1.

struct integrity_check_properties

Public Members

bool throw_on_first_error = true

When true, the integrity check will throw an exception on the first validation failure. When false, it will run through the entire tree and report all encountered validation failures then throw an exception if there is at least one failure.

bool error_on_min_node_size = true

When true, a node containing children less than the minimum node size will be treated as an error.

enum mdds::detail::rtree::export_tree_type

Values:

formatted_node_properties

Textural representation of a tree structure. Indent levels represent depths, and each line represents a single node.

extent_as_obj

The extents of all directory and value nodes are exported as Wavefront .obj format. Only 2 dimensional trees are supported for now.

For a 2-dimensional tree, each depth is represented by a 2D plane filled with rectangles representing the extents of either value or directory nodes at that depth level. The depth planes are then stacked vertically.

extent_as_svg

The extents of all directory and value nodes are exported as a scalable vector graphics (SVG) format. Only 2 dimensional trees are supported.

enum mdds::detail::rtree::search_type

Values:

overlap

Pick up all objects whose extents overlap with the specified search extent.

match

Pick up all objects whose extents exactly match the specified search extent.
