Use orcus’s spreadsheet document class

If you want to use orcus’ document as your document store instead, then you can use the import_factory class that orcus provides which already implements all necessary interfaces. The example code shown below illustrates how to do this:

#include <orcus/spreadsheet/document.hpp>
#include <orcus/spreadsheet/factory.hpp>
#include <orcus/orcus_ods.hpp>

#include <ixion/model_context.hpp>
#include <iostream>

using namespace orcus;

int main()
{
    // Instantiate a document, and wrap it with a factory.
    spreadsheet::document doc;
    spreadsheet::import_factory factory(doc);

    // Pass the factory to the document loader, and read the content from a file
    // to populate the document.
    orcus_ods loader(&factory);
    loader.read_file("/path/to/document.ods");

    // Now that the document is fully populated, access its content.
    const ixion::model_context& model = doc.get_model_context();

    // Read the header row and print its content.

    ixion::abs_address_t pos(0, 0, 0); // Set the cell position to A1.
    ixion::string_id_t str_id = model.get_string_identifier(pos);

    const std::string* s = model.get_string(str_id);
    assert(s);
    std::cout << "A1: " << *s << std::endl;

    pos.column = 1; // Move to B1
    str_id = model.get_string_identifier(pos);
    s = model.get_string(str_id);
    assert(s);
    std::cout << "B1: " << *s << std::endl;

    pos.column = 2; // Move to C1
    str_id = model.get_string_identifier(pos);
    s = model.get_string(str_id);
    assert(s);
    std::cout << "C1: " << *s << std::endl;

    return EXIT_SUCCESS;
}

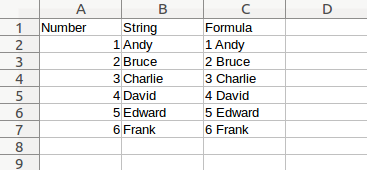

This example code loads a file saved in the Open Document Spreadsheet format. It consists of the following content on its first sheet.

While it is not clear from this screenshot, cell C2 contains the formula CONCATENATE(A2, ” “, B2) to concatenate the content of A2 and B2 with a space between them. Cells C3 through C7 also contain similar formula expressions.

Let’s walk through this code step by step. First, we need to instantiate the document store. Here we are using the concrete document class available in orcus. Then immediately pass this document to the import_factory instance also from orcus:

// Instantiate a document, and wrap it with a factory.
spreadsheet::document doc;
spreadsheet::import_factory factory(doc);

The next step is to create the loader instance and pass the factory to it:

// Pass the factory to the document loader, and read the content from a file
// to populate the document.
orcus_ods loader(&factory);

In this example we are using the orcus_ods filter class because the document we are loading is of Open Document Spreadsheet type, but the process is the same for other document types, the only difference being the name of the class. Once the filter object is constructed, we’ll simply load the file by calling its read_file() method and passing the path to the file as its argument:

loader.read_file("/path/to/document.ods");

Once this call returns, the document has been fully populated. What the rest of the code does is access the content of the first row of the first sheet of the document. First, you need to get a reference to the internal cell value store that we call model context:

const ixion::model_context& model = doc.get_model_context();

Since the content of cell A1 is a string, to get the value you need to first get the ID of the string:

ixion::abs_address_t pos(0, 0, 0); // Set the cell position to A1.
ixion::string_id_t str_id = model.get_string_identifier(pos);

Once you have the ID of the string, you can pass that to the model to get the actual string value and print it to the standard output:

const std::string* s = model.get_string(str_id);
assert(s);
std::cout << "A1: " << *s << std::endl;

Here we do assume that the string value exists for the given ID. In case you pass a string ID value to the get_string() method and there isn’t a string value associated with it, you’ll get a null pointer instead.

The reason you need to take this 2-step process to get a string value is because all the string values stored in the cells are pooled at the document model level, and the cells themselves only store the ID values.

You may also have noticed that the types surrounding the ixion::model_context class are all in the ixion namespace. It is because orcus’ own document class uses the formula engine from the ixion library in order to calculate the results of the formula cells inside the document, and the formula engine requires all cell values to be stored in the ixion::model_context instance.

Note

The document class in orcus uses the formula engine from the ixion library to calculate the results of the formula cells stored in the document.

The rest of the code basically repeats the same process for cells B1 and C1:

pos.column = 1; // Move to B1
str_id = model.get_string_identifier(pos);
s = model.get_string(str_id);
assert(s);
std::cout << "B1: " << *s << std::endl;

pos.column = 2; // Move to C1
str_id = model.get_string_identifier(pos);
s = model.get_string(str_id);
assert(s);
std::cout << "C1: " << *s << std::endl;

You will see the following output when you compile and run this code:

A1: Number
B1: String
C1: Formula

Accessing the numeric cell values are a bit simpler since the values are stored directly with the cells. Using the document from the above example code, the following code:

for (spreadsheet::row_t row = 1; row <= 6; ++row)
{
    ixion::abs_address_t pos(0, row, 0);
    double value = model.get_numeric_value(pos);
    std::cout << "A" << (pos.row+1) << ": " << value << std::endl;
}

will access the cells from A2 through A7 and print out their numeric values. You should see the following output when you run this code block:

A2: 1
A3: 2
A4: 3
A5: 4
A6: 5
A7: 6

It’s a bit more complex to handle formula cells. Since each formula cell contains two things: 1) the formula expression which is stored as tokens internally, and 2) the cached result of the formula. The following code illustrates how to retrieve the cached formula results of cells C2 through C7:

for (spreadsheet::row_t row = 1; row <=6; ++row)
{
    ixion::abs_address_t pos(0, row, 2); // Column C
    const ixion::formula_cell* fc = model.get_formula_cell(pos);
    assert(fc);

    // Get the formula cell results.
    const ixion::formula_result& result = fc->get_result_cache();

    // We already know the result is a string.
    ixion::string_id_t sid = result.get_string();
    const std::string* s = model.get_string(sid);
    assert(s);
    std::cout << "C" << (pos.row+1) << ": " << *s << std::endl;
}

For each cell, this code first accesses the stored formula cell instance, get a reference to its cached result, then obtain its string result value to print it out to the standard output. Running this block of code will yield the following output:

C2: 1 Andy
C3: 2 Bruce
C4: 3 Charlie
C5: 4 David
C6: 5 Edward
C7: 6 Frank

Warning

In production code, you should probabaly check the formula cell pointer which may be null in case the cell at the specified position is not a formula cell.
