Use a user-defined custom document class

In this section we will demonstrate how you can use orcus to populate your own custom document model by implementing your own set of interface classes and passing it to the orcus import filter. The first example code shown below is the absolute minimum that you need to implement in order for the orcus filter to function properly:

#include <orcus/spreadsheet/import_interface.hpp>
#include <orcus/orcus_ods.hpp>

#include <iostream>

using namespace std;
using namespace orcus::spreadsheet;
using orcus::orcus_ods;

class my_empty_import_factory : public iface::import_factory
{
public:
    virtual iface::import_sheet* append_sheet(
        sheet_t sheet_index, const char* sheet_name, size_t sheet_name_length) override
    {
        cout << "append_sheet: sheet index: " << sheet_index
             << "; sheet name: " << string(sheet_name, sheet_name_length)
             << endl;
        return nullptr;
    }

    virtual iface::import_sheet* get_sheet(
        const char* sheet_name, size_t sheet_name_length) override
    {
        cout << "get_sheet: sheet name: "
             << string(sheet_name, sheet_name_length) << endl;
        return nullptr;
    }

    virtual iface::import_sheet* get_sheet(sheet_t sheet_index) override
    {
        cout << "get_sheet: sheet index: " << sheet_index << endl;
        return nullptr;
    }

    virtual void finalize() override {}
};

int main()
{
    my_empty_import_factory factory;
    orcus_ods loader(&factory);
    loader.read_file("/path/to/multi-sheets.ods");

    return EXIT_SUCCESS;
}

Just like the example we used in the previous section, we are also loading a document saved in the Open Document Spreadsheet format via orcus_ods. The document being loaded is named multi-sheets.ods, and contains three sheets which are are named ‘1st Sheet’, ‘2nd Sheet’, and ‘3rd Sheet’ in this exact order. When you compile and execute the above code, you should get the following output:

append_sheet: sheet index: 0; sheet name: 1st Sheet
append_sheet: sheet index: 1; sheet name: 2nd Sheet
append_sheet: sheet index: 2; sheet name: 3rd Sheet

One primary role the import factory plays is to provide the orcus import filter with the ability to create and insert a new sheet to the document. As illustrated in the above code, it also provides access to existing sheets by its name or its position. Every import factory implementation must be a derived class of the orcus::spreadsheet::iface::import_factory interface base class. At a minimum, it must implement

• the append_sheet() method which inserts a new sheet and return access to it,
• two variants of the get_sheet() method which returns access to an existing sheet, and
• the finalize() method which gets called exactly once at the very end of the import, to give the implementation a chance to perform post-import tasks.

in order for the code to be buildable. Now, since all of the sheet accessor methods return null pointers in this code, the import filter has no way of populating the sheet data. To actually receive the sheet data from the import filter, you must have these methods return valid pointers to sheet accessors. The next example shows how that can be done.

Implement sheet interface

In this section we will expand on the code in the previous section to implement the sheet accessor interface, in order to receive cell values in each individual sheet. In this example, we will define a structure to hold a cell value, and store them in a 2-dimensional array for each sheet. First, let’s define the cell value structure:

enum class cell_value_type { empty, numeric, string };

struct cell_value
{
    cell_value_type type;

    union
    {
        size_t index;
        double f;
    };

    cell_value() : type(cell_value_type::empty) {}
};

As we will be handling only three cell types i.e. empty, numeric, or string cell type, this structure will work just fine. Next, we’ll define a sheet class called my_sheet that stores the cell values in a 2-dimensional array, and implements all required interfaces as a child class of import_sheet.

At a minimum, the sheet accessor class must implement the following virtual methods to satisfy the interface requirements of import_sheet.

• set_auto() - This is a setter method for a cell whose type is undetermined. The implementor must determine the value type of this cell, from the raw string value of the cell. This method is used when loading a CSV document, for instance.
• set_string() - This is a setter method for a cell that stores a string value. All cell string values are expectd to be pooled for the entire document, and this method only receives a string index into a centrally-managed string table. The document model is expected to implement a central string table that can translate an index into its actual string value.
• set_value() - This is a setter method for a cell that stores a numeric value.
• set_bool() - This is a setter method for a cell that stores a boolean value. Note that not all format types use this method, as some formats store boolean values as numeric values.
• set_date_time() - This is a setter method for a cell that stores a date time value. As with boolean value type, some format types may not use this method as they store date time values as numeric values, typically as days since epoch.
• set_format() - This is a setter method for applying cell formats. Just like the string values, cell format properties are expected to be stored in a document-wide cell format properties table, and this method only receives an index into the table.
• get_sheet_size() - This method is expected to return the dimension of the sheet which the loader may need in some operations.

For now, we’ll only implement set_string(), set_value(), and get_sheet_size(), and leave the rest empty.

Here is the actual code for class my_sheet:

class my_sheet : public iface::import_sheet
{
    cell_value m_cells[100][1000];
    range_size_t m_sheet_size;
    sheet_t m_sheet_index;

public:
    my_sheet(sheet_t sheet_index) :
        m_sheet_index(sheet_index)
    {
        m_sheet_size.rows = 1000;
        m_sheet_size.columns = 100;
    }

    virtual void set_string(row_t row, col_t col, size_t sindex) override
    {
        cout << "(sheet: " << m_sheet_index << "; row: " << row << "; col: " << col << "): string index = " << sindex << endl;

        m_cells[col][row].type = cell_value_type::string;
        m_cells[col][row].index = sindex;
    }

    virtual void set_value(row_t row, col_t col, double value) override
    {
        cout << "(sheet: " << m_sheet_index << "; row: " << row << "; col: " << col << "): value = " << value << endl;

        m_cells[col][row].type = cell_value_type::numeric;
        m_cells[col][row].f = value;
    }

    virtual range_size_t get_sheet_size() const override
    {
        return m_sheet_size;
    }

    // We don't implement these methods for now.
    virtual void set_auto(row_t row, col_t col, const char* p, size_t n) override {}
    virtual void set_bool(row_t row, col_t col, bool value) override {}
    virtual void set_date_time(row_t row, col_t col, int year, int month, int day, int hour, int minute, double second) override {}
    virtual void set_format(row_t row, col_t col, size_t xf_index) override {}
    virtual void set_format(row_t row_start, col_t col_start, row_t row_end, col_t col_end, size_t xf_index) override {}
};

Note that this class receives its sheet index value from the caller upon instantiation. A sheet index is a 0-based value and represents its position within the sheet collection.

Finally, we will modify the my_import_factory class to store and manage a collection of my_sheet instances and to return the pointer value to a correct sheet accessor instance as needed.

class my_import_factory : public iface::import_factory
{
    std::vector<std::unique_ptr<my_sheet>> m_sheets;

public:
    virtual iface::import_sheet* append_sheet(
        sheet_t sheet_index, const char* sheet_name, size_t sheet_name_length) override
    {
        m_sheets.push_back(std::make_unique<my_sheet>(m_sheets.size()));
        return m_sheets.back().get();
    }

    virtual iface::import_sheet* get_sheet(
        const char* sheet_name, size_t sheet_name_length) override
    {
        // TODO : implement this.
        return nullptr;
    }

    virtual iface::import_sheet* get_sheet(sheet_t sheet_index) override
    {
        sheet_t sheet_count = m_sheets.size();
        return sheet_index < sheet_count ? m_sheets[sheet_index].get() : nullptr;
    }

    virtual void finalize() override {}
};

Let’s put it all together and run this code:

#include <orcus/spreadsheet/import_interface.hpp>
#include <orcus/orcus_ods.hpp>

#include <iostream>
#include <memory>

using namespace std;
using namespace orcus::spreadsheet;
using orcus::orcus_ods;

enum class cell_value_type { empty, numeric, string };

struct cell_value
{
    cell_value_type type;

    union
    {
        size_t index;
        double f;
    };

    cell_value() : type(cell_value_type::empty) {}
};

class my_sheet : public iface::import_sheet
{
    cell_value m_cells[100][1000];
    range_size_t m_sheet_size;
    sheet_t m_sheet_index;

public:
    my_sheet(sheet_t sheet_index) :
        m_sheet_index(sheet_index)
    {
        m_sheet_size.rows = 1000;
        m_sheet_size.columns = 100;
    }

    virtual void set_string(row_t row, col_t col, size_t sindex) override
    {
        cout << "(sheet: " << m_sheet_index << "; row: " << row << "; col: " << col << "): string index = " << sindex << endl;

        m_cells[col][row].type = cell_value_type::string;
        m_cells[col][row].index = sindex;
    }

    virtual void set_value(row_t row, col_t col, double value) override
    {
        cout << "(sheet: " << m_sheet_index << "; row: " << row << "; col: " << col << "): value = " << value << endl;

        m_cells[col][row].type = cell_value_type::numeric;
        m_cells[col][row].f = value;
    }

    virtual range_size_t get_sheet_size() const override
    {
        return m_sheet_size;
    }

    // We don't implement these methods for now.
    virtual void set_auto(row_t row, col_t col, const char* p, size_t n) override {}
    virtual void set_bool(row_t row, col_t col, bool value) override {}
    virtual void set_date_time(row_t row, col_t col, int year, int month, int day, int hour, int minute, double second) override {}
    virtual void set_format(row_t row, col_t col, size_t xf_index) override {}
    virtual void set_format(row_t row_start, col_t col_start, row_t row_end, col_t col_end, size_t xf_index) override {}
};

class my_import_factory : public iface::import_factory
{
    std::vector<std::unique_ptr<my_sheet>> m_sheets;

public:
    virtual iface::import_sheet* append_sheet(
        sheet_t sheet_index, const char* sheet_name, size_t sheet_name_length) override
    {
        m_sheets.push_back(std::make_unique<my_sheet>(m_sheets.size()));
        return m_sheets.back().get();
    }

    virtual iface::import_sheet* get_sheet(
        const char* sheet_name, size_t sheet_name_length) override
    {
        // TODO : implement this.
        return nullptr;
    }

    virtual iface::import_sheet* get_sheet(sheet_t sheet_index) override
    {
        sheet_t sheet_count = m_sheets.size();
        return sheet_index < sheet_count ? m_sheets[sheet_index].get() : nullptr;
    }

    virtual void finalize() override {}
};

int main()
{
    my_import_factory factory;
    orcus_ods loader(&factory);
    loader.read_file("/path/to/multi-sheets.ods");

    return EXIT_SUCCESS;
}

We’ll be loading the same document we loaded in the previous example, but this time we will receive its cell values. Let’s go through each sheet one at a time.

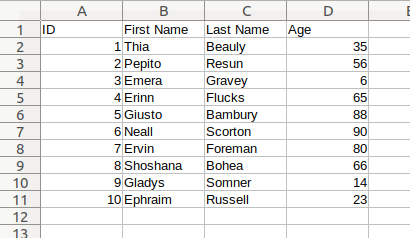

Data on the first sheet looks like this:

It consists of 4 columns, with each column having a header row followed by exactly ten rows of data. The first and forth columns contain numeric data, while the second and third columns contain string data.

When you run the above code to load this sheet, you’ll get the following output:

(sheet: 0; row: 0; col: 0): string index = 0
(sheet: 0; row: 0; col: 1): string index = 0
(sheet: 0; row: 0; col: 2): string index = 0
(sheet: 0; row: 0; col: 3): string index = 0
(sheet: 0; row: 1; col: 0): value = 1
(sheet: 0; row: 1; col: 1): string index = 0
(sheet: 0; row: 1; col: 2): string index = 0
(sheet: 0; row: 1; col: 3): value = 35
(sheet: 0; row: 2; col: 0): value = 2
(sheet: 0; row: 2; col: 1): string index = 0
(sheet: 0; row: 2; col: 2): string index = 0
(sheet: 0; row: 2; col: 3): value = 56
(sheet: 0; row: 3; col: 0): value = 3
(sheet: 0; row: 3; col: 1): string index = 0
(sheet: 0; row: 3; col: 2): string index = 0
(sheet: 0; row: 3; col: 3): value = 6
(sheet: 0; row: 4; col: 0): value = 4
(sheet: 0; row: 4; col: 1): string index = 0
(sheet: 0; row: 4; col: 2): string index = 0
(sheet: 0; row: 4; col: 3): value = 65
(sheet: 0; row: 5; col: 0): value = 5
(sheet: 0; row: 5; col: 1): string index = 0
(sheet: 0; row: 5; col: 2): string index = 0
(sheet: 0; row: 5; col: 3): value = 88
(sheet: 0; row: 6; col: 0): value = 6
(sheet: 0; row: 6; col: 1): string index = 0
(sheet: 0; row: 6; col: 2): string index = 0
(sheet: 0; row: 6; col: 3): value = 90
(sheet: 0; row: 7; col: 0): value = 7
(sheet: 0; row: 7; col: 1): string index = 0
(sheet: 0; row: 7; col: 2): string index = 0
(sheet: 0; row: 7; col: 3): value = 80
(sheet: 0; row: 8; col: 0): value = 8
(sheet: 0; row: 8; col: 1): string index = 0
(sheet: 0; row: 8; col: 2): string index = 0
(sheet: 0; row: 8; col: 3): value = 66
(sheet: 0; row: 9; col: 0): value = 9
(sheet: 0; row: 9; col: 1): string index = 0
(sheet: 0; row: 9; col: 2): string index = 0
(sheet: 0; row: 9; col: 3): value = 14
(sheet: 0; row: 10; col: 0): value = 10
(sheet: 0; row: 10; col: 1): string index = 0
(sheet: 0; row: 10; col: 2): string index = 0
(sheet: 0; row: 10; col: 3): value = 23

There is a couple of things worth pointing out. First, the cell data flows left to right first then top to bottom second. Second, for this particular sheet and for this particular format, implementing just the two setter methods, namely set_string() and set_value() are enough to receive all cell values. However, we are getting a string index value of 0 for all string cells. This is because orcus expects the backend document model to implement the shared strings interface which is responsible for providing correct string indices to the import filter, and we have not yet implemented one. Let’s fix that.

Implement shared strings interface

The first thing to do is define some types:

using ss_type = std::deque<std::string>;
using ss_hash_type = std::unordered_map<pstring, size_t, pstring::hash>;

Here, we define ss_type to be the authoritative store for the shared string values. The string values will be stored as std::string type, and we use std::deque here to avoid re-allocation of internal buffers as the size of the container grows.

Another type we define is ss_hash_type, which will be the hash map type for storing string-to-index mapping entries. Here, we are using pstring instead of std::string so that we can simply re-use the string values stored in the first container simply by pointing to their memory locations.

The shared string interface is designed to handle both unformatted and formatted string values. The following two methods:

• add()
• append()

are for unformatted string values. The add() method is used when passing a string value that may or may not already exist in the shared string pool. The append() method, on the other hand, is used only when the string value being passed is a brand-new string not yet stored in the string pool. When implementing the append() method, you may skip checking for the existance of the string value in the pool before inserting it. Both of these methods are expected to return a positive integer value as the index of the string being passed.

The following eight methods:

• set_segment_bold()
• set_segment_font()
• set_segment_font_color()
• set_segment_font_name()
• set_segment_font_size()
• set_segment_italic()
• append_segment()
• commit_segments()

are for receiving formatted string values. Conceptually, a formatted string consists of a series of multiple string segments, where each segment may have different formatting attributes applied to it. These set_segment_* methods are used to set the individual formatting attributes for the current string segment, and the string value for the current segment is passed through the append_segment() call. The order in which the set_segment_* methods are called is not specified, and not all of them may be called, but they are guaranteed to be called before the append_segment() method gets called. The implementation should keep a buffer to store the formatting attributes for the current segment and apply each attribute to the buffer as one of the set_segment_* methods gets called. When the append_segment() gets called, the implementation should apply the formatting attirbute set currently in the buffer to the current segment, and reset the buffer for the next segment. When all of the string segments and their formatting attributes are passed, commit_segments() gets called, signaling the implementation that now it’s time to commit the string to the document model.

As we are going to ignore the formatting attributes in our current example, the following code will do:

class my_shared_strings : public iface::import_shared_strings
{
    ss_hash_type m_ss_hash;
    ss_type& m_ss;
    std::string m_current_string;

public:
    my_shared_strings(ss_type& ss) : m_ss(ss) {}

    virtual size_t add(const char* s, size_t n) override
    {
        pstring input(s, n);

        auto it = m_ss_hash.find(input);
        if (it != m_ss_hash.end())
            // This string already exists in the pool.
            return it->second;

        // This is a brand-new string.
        return append(s, n);
    }

    virtual size_t append(const char* s, size_t n) override
    {
        size_t string_index = m_ss.size();
        m_ss.emplace_back(s, n);
        m_ss_hash.emplace(pstring(s, n), string_index);

        return string_index;
    }

    // The following methods are for formatted text segments, which we ignore for now.
    virtual void set_segment_bold(bool b) override {}
    virtual void set_segment_font(size_t font_index) override {}
    virtual void set_segment_font_color(color_elem_t alpha, color_elem_t red, color_elem_t green, color_elem_t blue) override {}
    virtual void set_segment_font_name(const char* s, size_t n) override {}
    virtual void set_segment_font_size(double point) override {}
    virtual void set_segment_italic(bool b) override {}

    virtual void append_segment(const char* s, size_t n) override
    {
        m_current_string += std::string(s, n);
    }

    virtual size_t commit_segments() override
    {
        size_t string_index = m_ss.size();
        m_ss.push_back(std::move(m_current_string));

        const std::string& s = m_ss.back();
        orcus::pstring sv(s.data(), s.size());
        m_ss_hash.emplace(sv, string_index);

        return string_index;
    }
};

Note that some import filters may use the append_segment() and commit_segments() combination even for unformatted strings. Because of this, you still need to implement these two methods even if raw string values are all you care about.

Note also that the container storing the string values is a reference. The source container will be owned by my_import_factory who will also be the owner of the my_shared_strings instance. Shown below is the modified version of my_import_factory that provides the shared string interface:

class my_import_factory : public iface::import_factory
{
    ss_type m_string_pool; // string pool to be shared everywhere.
    my_shared_strings m_shared_strings;
    std::vector<std::unique_ptr<my_sheet>> m_sheets;

public:
    my_import_factory() : m_shared_strings(m_string_pool) {}

    virtual iface::import_shared_strings* get_shared_strings() override
    {
        return &m_shared_strings;
    }

    virtual iface::import_sheet* append_sheet(
        sheet_t sheet_index, const char* sheet_name, size_t sheet_name_length) override
    {
        // Pass the string pool to each sheet instance.
        m_sheets.push_back(std::make_unique<my_sheet>(m_sheets.size(), m_string_pool));
        return m_sheets.back().get();
    }

    virtual iface::import_sheet* get_sheet(
        const char* sheet_name, size_t sheet_name_length) override
    {
        // TODO : implement this.
        return nullptr;
    }

    virtual iface::import_sheet* get_sheet(sheet_t sheet_index) override
    {
        sheet_t sheet_count = m_sheets.size();
        return sheet_index < sheet_count ? m_sheets[sheet_index].get() : nullptr;
    }

    virtual void finalize() override {}
};

The shared string store is also passed to each sheet instance, and we’ll use that to fetch the string values from their respective string indices.

Let’s put this all together:

#include <orcus/spreadsheet/import_interface.hpp>
#include <orcus/orcus_ods.hpp>

#include <iostream>
#include <memory>
#include <unordered_map>
#include <deque>

using namespace std;
using namespace orcus::spreadsheet;
using orcus::orcus_ods;
using orcus::pstring;

enum class cell_value_type { empty, numeric, string };

using ss_type = std::deque<std::string>;
using ss_hash_type = std::unordered_map<pstring, size_t, pstring::hash>;

struct cell_value
{
    cell_value_type type;

    union
    {
        size_t index;
        double f;
    };

    cell_value() : type(cell_value_type::empty) {}
};

class my_sheet : public iface::import_sheet
{
    cell_value m_cells[100][1000];
    range_size_t m_sheet_size;
    sheet_t m_sheet_index;
    const ss_type& m_string_pool;

public:
    my_sheet(sheet_t sheet_index, const ss_type& string_pool) :
        m_sheet_index(sheet_index),
        m_string_pool(string_pool)
    {
        m_sheet_size.rows = 1000;
        m_sheet_size.columns = 100;
    }

    virtual void set_string(row_t row, col_t col, size_t sindex) override
    {
        cout << "(sheet: " << m_sheet_index << "; row: " << row << "; col: " << col << "): string index = " << sindex << " (" << m_string_pool[sindex] << ")" << endl;

        m_cells[col][row].type = cell_value_type::string;
        m_cells[col][row].index = sindex;
    }

    virtual void set_value(row_t row, col_t col, double value) override
    {
        cout << "(sheet: " << m_sheet_index << "; row: " << row << "; col: " << col << "): value = " << value << endl;

        m_cells[col][row].type = cell_value_type::numeric;
        m_cells[col][row].f = value;
    }

    virtual range_size_t get_sheet_size() const override
    {
        return m_sheet_size;
    }

    // We don't implement these methods for now.
    virtual void set_auto(row_t row, col_t col, const char* p, size_t n) override {}
    virtual void set_bool(row_t row, col_t col, bool value) override {}
    virtual void set_date_time(row_t row, col_t col, int year, int month, int day, int hour, int minute, double second) override {}
    virtual void set_format(row_t row, col_t col, size_t xf_index) override {}
    virtual void set_format(
        row_t row_start, col_t col_start, row_t row_end, col_t col_end, size_t xf_index) override {}
};

class my_shared_strings : public iface::import_shared_strings
{
    ss_hash_type m_ss_hash;
    ss_type& m_ss;
    std::string m_current_string;

public:
    my_shared_strings(ss_type& ss) : m_ss(ss) {}

    virtual size_t add(const char* s, size_t n) override
    {
        pstring input(s, n);

        auto it = m_ss_hash.find(input);
        if (it != m_ss_hash.end())
            // This string already exists in the pool.
            return it->second;

        // This is a brand-new string.
        return append(s, n);
    }

    virtual size_t append(const char* s, size_t n) override
    {
        size_t string_index = m_ss.size();
        m_ss.emplace_back(s, n);
        m_ss_hash.emplace(pstring(s, n), string_index);

        return string_index;
    }

    // The following methods are for formatted text segments, which we ignore for now.
    virtual void set_segment_bold(bool b) override {}
    virtual void set_segment_font(size_t font_index) override {}
    virtual void set_segment_font_color(color_elem_t alpha, color_elem_t red, color_elem_t green, color_elem_t blue) override {}
    virtual void set_segment_font_name(const char* s, size_t n) override {}
    virtual void set_segment_font_size(double point) override {}
    virtual void set_segment_italic(bool b) override {}

    virtual void append_segment(const char* s, size_t n) override
    {
        m_current_string += std::string(s, n);
    }

    virtual size_t commit_segments() override
    {
        size_t string_index = m_ss.size();
        m_ss.push_back(std::move(m_current_string));

        const std::string& s = m_ss.back();
        orcus::pstring sv(s.data(), s.size());
        m_ss_hash.emplace(sv, string_index);

        return string_index;
    }
};

class my_import_factory : public iface::import_factory
{
    ss_type m_string_pool; // string pool to be shared everywhere.
    my_shared_strings m_shared_strings;
    std::vector<std::unique_ptr<my_sheet>> m_sheets;

public:
    my_import_factory() : m_shared_strings(m_string_pool) {}

    virtual iface::import_shared_strings* get_shared_strings() override
    {
        return &m_shared_strings;
    }

    virtual iface::import_sheet* append_sheet(
        sheet_t sheet_index, const char* sheet_name, size_t sheet_name_length) override
    {
        // Pass the string pool to each sheet instance.
        m_sheets.push_back(std::make_unique<my_sheet>(m_sheets.size(), m_string_pool));
        return m_sheets.back().get();
    }

    virtual iface::import_sheet* get_sheet(
        const char* sheet_name, size_t sheet_name_length) override
    {
        // TODO : implement this.
        return nullptr;
    }

    virtual iface::import_sheet* get_sheet(sheet_t sheet_index) override
    {
        sheet_t sheet_count = m_sheets.size();
        return sheet_index < sheet_count ? m_sheets[sheet_index].get() : nullptr;
    }

    virtual void finalize() override {}
};

int main()
{
    my_import_factory factory;
    orcus_ods loader(&factory);
    loader.read_file("/path/to/multi-sheets.ods");

    return EXIT_SUCCESS;
}

The sheet class is largely unchanged except for one thing; it now takes a reference to the string pool and print the actual string value alongside the string index associated with it. When you execute this code, you’ll see the following output when loading the same sheet:

(sheet: 0; row: 0; col: 0): string index = 0 (ID)
(sheet: 0; row: 0; col: 1): string index = 1 (First Name)
(sheet: 0; row: 0; col: 2): string index = 2 (Last Name)
(sheet: 0; row: 0; col: 3): string index = 3 (Age)
(sheet: 0; row: 1; col: 0): value = 1
(sheet: 0; row: 1; col: 1): string index = 5 (Thia)
(sheet: 0; row: 1; col: 2): string index = 6 (Beauly)
(sheet: 0; row: 1; col: 3): value = 35
(sheet: 0; row: 2; col: 0): value = 2
(sheet: 0; row: 2; col: 1): string index = 9 (Pepito)
(sheet: 0; row: 2; col: 2): string index = 10 (Resun)
(sheet: 0; row: 2; col: 3): value = 56
(sheet: 0; row: 3; col: 0): value = 3
(sheet: 0; row: 3; col: 1): string index = 13 (Emera)
(sheet: 0; row: 3; col: 2): string index = 14 (Gravey)
(sheet: 0; row: 3; col: 3): value = 6
(sheet: 0; row: 4; col: 0): value = 4
(sheet: 0; row: 4; col: 1): string index = 17 (Erinn)
(sheet: 0; row: 4; col: 2): string index = 18 (Flucks)
(sheet: 0; row: 4; col: 3): value = 65
(sheet: 0; row: 5; col: 0): value = 5
(sheet: 0; row: 5; col: 1): string index = 21 (Giusto)
(sheet: 0; row: 5; col: 2): string index = 22 (Bambury)
(sheet: 0; row: 5; col: 3): value = 88
(sheet: 0; row: 6; col: 0): value = 6
(sheet: 0; row: 6; col: 1): string index = 25 (Neall)
(sheet: 0; row: 6; col: 2): string index = 26 (Scorton)
(sheet: 0; row: 6; col: 3): value = 90
(sheet: 0; row: 7; col: 0): value = 7
(sheet: 0; row: 7; col: 1): string index = 29 (Ervin)
(sheet: 0; row: 7; col: 2): string index = 30 (Foreman)
(sheet: 0; row: 7; col: 3): value = 80
(sheet: 0; row: 8; col: 0): value = 8
(sheet: 0; row: 8; col: 1): string index = 33 (Shoshana)
(sheet: 0; row: 8; col: 2): string index = 34 (Bohea)
(sheet: 0; row: 8; col: 3): value = 66
(sheet: 0; row: 9; col: 0): value = 9
(sheet: 0; row: 9; col: 1): string index = 37 (Gladys)
(sheet: 0; row: 9; col: 2): string index = 38 (Somner)
(sheet: 0; row: 9; col: 3): value = 14
(sheet: 0; row: 10; col: 0): value = 10
(sheet: 0; row: 10; col: 1): string index = 41 (Ephraim)
(sheet: 0; row: 10; col: 2): string index = 42 (Russell)
(sheet: 0; row: 10; col: 3): value = 23

The string indices now increment nicely, and their respective string values look correct.

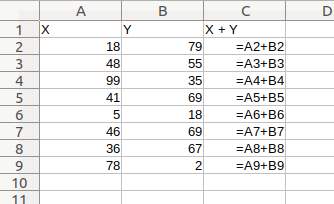

Now, let’s turn our attention to the second sheet, which contains formulas. First, here is what the second sheet looks like:

It contains a simple table extending from A1 to C9. It consists of three columns and the first row is a header row. Cells in the the first and second columns contain simple numbers and the third column contains formulas that simply add the two numbers to the left of the same row. When loading this sheet using the last code we used above, you’ll see the following output:

(sheet: 1; row: 0; col: 0): string index = 44 (X)
(sheet: 1; row: 0; col: 1): string index = 45 (Y)
(sheet: 1; row: 0; col: 2): string index = 46 (X + Y)
(sheet: 1; row: 1; col: 0): value = 18
(sheet: 1; row: 1; col: 1): value = 79
(sheet: 1; row: 2; col: 0): value = 48
(sheet: 1; row: 2; col: 1): value = 55
(sheet: 1; row: 3; col: 0): value = 99
(sheet: 1; row: 3; col: 1): value = 35
(sheet: 1; row: 4; col: 0): value = 41
(sheet: 1; row: 4; col: 1): value = 69
(sheet: 1; row: 5; col: 0): value = 5
(sheet: 1; row: 5; col: 1): value = 18
(sheet: 1; row: 6; col: 0): value = 46
(sheet: 1; row: 6; col: 1): value = 69
(sheet: 1; row: 7; col: 0): value = 36
(sheet: 1; row: 7; col: 1): value = 67
(sheet: 1; row: 8; col: 0): value = 78
(sheet: 1; row: 8; col: 1): value = 2

Everything looks fine except that the formula cells in C2:C9 are not loaded at all. This is because, in order to receive formula cell data, you must implement the required import_formula interface, which we will cover in the next section.

Implement formula interface

In this section we will extend the code from the previous section in order to receive and process formula cell values from the sheet. We will need to make quite a few changes. Let’s go over this one thing at a time. First, we are adding a new cell value type formula:

enum class cell_value_type { empty, numeric, string, formula }; // adding a formula type here

which should not come as a surprise.

We are not making any change to the cell_value struct itself, but we are re-using its index member for a formula cell value such that, if the cell stores a formula, the index will refer to its actual formula data which will be stored in a separate data store, much like how strings are stored externally and referenced by their indices in the cell_value instances.

We are also adding a branch-new class called cell_grid, to add an extra layer over the raw cell value array:

class cell_grid
{
    cell_value m_cells[100][1000];
public:

    cell_value& operator()(row_t row, col_t col)
    {
        return m_cells[col][row];
    }
};

Each sheet instance will own one instance of cell_grid, and the formula interface class instance will hold a reference to it and use it to insert formula cell values into it. The same sheet instance will also hold a formula value store, and pass its reference to the formula interface class.

The formula interface class must implement the following methods:

• set_position()
• set_formula()
• set_shared_formula_index()
• set_result_string()
• set_result_value()
• set_result_empty()
• set_result_bool()
• commit()

Depending on the type of a formula cell, and depending on the format of the document, some methods may not be called. The set_position() method always gets called regardless of the formula cell type, to specify the position of the formula cell. The set_formula() gets called for a formula cell that does not share its formula expression with any other formula cells, or a formula cell that shares its formula expression with a group of other formuls cells and is the primary cell of that group. If it’s the primary cell of a grouped formula cells, the set_shared_formula_index() method also gets called to receive the identifier value of that group. All formula cells belonging to the same group receives the same identifier value via set_shared_formula_index(), but only the primary cell of a group receives the formula expression string via set_formula(). The rest of the methods - set_result_string(), set_result_value(), set_result_empty() and set_result_bool() - are called to deliver the cached formula cell value when applicable.

The commit() method gets called at the very end to let the implementation commit the formula cell data to the backend document store.

Without further ado, here is the formula interface implementation that we will use:

class my_formula : public iface::import_formula
{
    sheet_t m_sheet_index;
    cell_grid& m_cells;
    std::vector<formula>& m_formula_store;

    row_t m_row;
    col_t m_col;
    formula m_formula;

public:
    my_formula(sheet_t sheet, cell_grid& cells, std::vector<formula>& formulas) :
        m_sheet_index(sheet),
        m_cells(cells),
        m_formula_store(formulas),
        m_row(0),
        m_col(0) {}

    virtual void set_position(row_t row, col_t col) override
    {
        m_row = row;
        m_col = col;
    }

    virtual void set_formula(formula_grammar_t grammar, const char* p, size_t n) override
    {
        m_formula.expression = std::string(p, n);
        m_formula.grammar = grammar;
    }

    virtual void set_shared_formula_index(size_t index) override {}

    virtual void set_result_string(size_t sindex) override {}
    virtual void set_result_value(double value) override {}
    virtual void set_result_empty() override {}
    virtual void set_result_bool(bool value) override {}

    virtual void commit() override
    {
        cout << "(sheet: " << m_sheet_index << "; row: " << m_row << "; col: " << m_col << "): formula = "
             << m_formula.expression << " (" << m_formula.grammar << ")" << endl;

        size_t index = m_formula_store.size();
        m_cells(m_row, m_col).type = cell_value_type::formula;
        m_cells(m_row, m_col).index = index;
        m_formula_store.push_back(std::move(m_formula));
    }
};

Note that since we are loading a OpenDocument Spereadsheet file (.ods) which does not support shared formulas, we do not need to handle the set_shared_formula_index() method. Likewise, we are leaving the set_result_* methods unhandled for now.

This interface class also stores references to cell_grid and std::vector<formula> instances, both of which are passed from the parent sheet instance.

We also need to make a few changes to the sheet interface class to provide a formula interface and add a formula value store:

class my_sheet : public iface::import_sheet
{
    cell_grid m_cells;
    std::vector<formula> m_formula_store;
    my_formula m_formula_iface;
    range_size_t m_sheet_size;
    sheet_t m_sheet_index;
    const ss_type& m_string_pool;

public:
    my_sheet(sheet_t sheet_index, const ss_type& string_pool) :
        m_formula_iface(sheet_index, m_cells, m_formula_store),
        m_sheet_index(sheet_index),
        m_string_pool(string_pool)
    {
        m_sheet_size.rows = 1000;
        m_sheet_size.columns = 100;
    }

    virtual void set_string(row_t row, col_t col, size_t sindex) override
    {
        cout << "(sheet: " << m_sheet_index << "; row: " << row << "; col: " << col
             << "): string index = " << sindex << " (" << m_string_pool[sindex] << ")" << endl;

        m_cells(row, col).type = cell_value_type::string;
        m_cells(row, col).index = sindex;
    }

    virtual void set_value(row_t row, col_t col, double value) override
    {
        cout << "(sheet: " << m_sheet_index << "; row: " << row << "; col: " << col
             << "): value = " << value << endl;

        m_cells(row, col).type = cell_value_type::numeric;
        m_cells(row, col).f = value;
    }

    virtual range_size_t get_sheet_size() const override
    {
        return m_sheet_size;
    }

    // We don't implement these methods for now.
    virtual void set_auto(row_t row, col_t col, const char* p, size_t n) override {}
    virtual void set_bool(row_t row, col_t col, bool value) override {}
    virtual void set_date_time(row_t row, col_t col, int year, int month, int day, int hour, int minute, double second) override {}
    virtual void set_format(row_t row, col_t col, size_t xf_index) override {}
    virtual void set_format(
        row_t row_start, col_t col_start, row_t row_end, col_t col_end, size_t xf_index) override {}

    virtual iface::import_formula* get_formula() override
    {
        return &m_formula_iface;
    }
};

We’ve added the get_formula() method which returns a pointer to the my_formula class instance defined above. The rest of the code is unchanged.

Now let’s see what happens when loading the same sheet from the previous section:

(sheet: 1; row: 0; col: 0): string index = 44 (X)
(sheet: 1; row: 0; col: 1): string index = 45 (Y)
(sheet: 1; row: 0; col: 2): string index = 46 (X + Y)
(sheet: 1; row: 1; col: 0): value = 18
(sheet: 1; row: 1; col: 1): value = 79
(sheet: 1; row: 2; col: 0): value = 48
(sheet: 1; row: 2; col: 1): value = 55
(sheet: 1; row: 3; col: 0): value = 99
(sheet: 1; row: 3; col: 1): value = 35
(sheet: 1; row: 4; col: 0): value = 41
(sheet: 1; row: 4; col: 1): value = 69
(sheet: 1; row: 5; col: 0): value = 5
(sheet: 1; row: 5; col: 1): value = 18
(sheet: 1; row: 6; col: 0): value = 46
(sheet: 1; row: 6; col: 1): value = 69
(sheet: 1; row: 7; col: 0): value = 36
(sheet: 1; row: 7; col: 1): value = 67
(sheet: 1; row: 8; col: 0): value = 78
(sheet: 1; row: 8; col: 1): value = 2
(sheet: 1; row: 1; col: 2): formula = [.A2]+[.B2] (ods)
(sheet: 1; row: 2; col: 2): formula = [.A3]+[.B3] (ods)
(sheet: 1; row: 3; col: 2): formula = [.A4]+[.B4] (ods)
(sheet: 1; row: 4; col: 2): formula = [.A5]+[.B5] (ods)
(sheet: 1; row: 5; col: 2): formula = [.A6]+[.B6] (ods)
(sheet: 1; row: 6; col: 2): formula = [.A7]+[.B7] (ods)
(sheet: 1; row: 7; col: 2): formula = [.A8]+[.B8] (ods)
(sheet: 1; row: 8; col: 2): formula = [.A9]+[.B9] (ods)

Looks like we are getting the formula cell values this time around.

One thing to note is that the formula expression strings you see here follow the syntax rules of OpenFormula specification, which is the formula syntax referenced by the OpenDocument Spreadsheet format.

Implement more interfaces

This section has covered only a part of the available spreadsheet interfaces you can implement in your code. Refer to the Spreadsheet Interface section to see the complete list of interfaces.
